[TOC]

1.利用数组记录多个随机圆

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
#include<stdio.h>
#include<conio.h>
#include<graphics.h>
#include<time.h>

int main() {
	int width = 600;
	int height = 600;
	initgraph(width, height);
	setbkcolor(WHITE);
	cleardevice();
	srand(time(0));

//定义三个数组存储所有圆的圆心坐标和半径
	int x[100];
	int y[100];
	int r[100];
	int rmin = 8;
	int rmax = 50;
	int circlenum = 100;

	for (int i = 0; i < circlenum; i++) {
		x[i] = rand() % width;
		y[i] = rand() % height;
		r[i] = rand() % (rmax - rmin + 1) + rmin;
	}

	//遍历画图
	for (int i = 0; i < circlenum; i++) {
		setlinecolor(RED);
		setfillcolor(YELLOW);
		fillcircle(x[i], y[i], r[i]);
	}

	_getch();
	return 0;

}

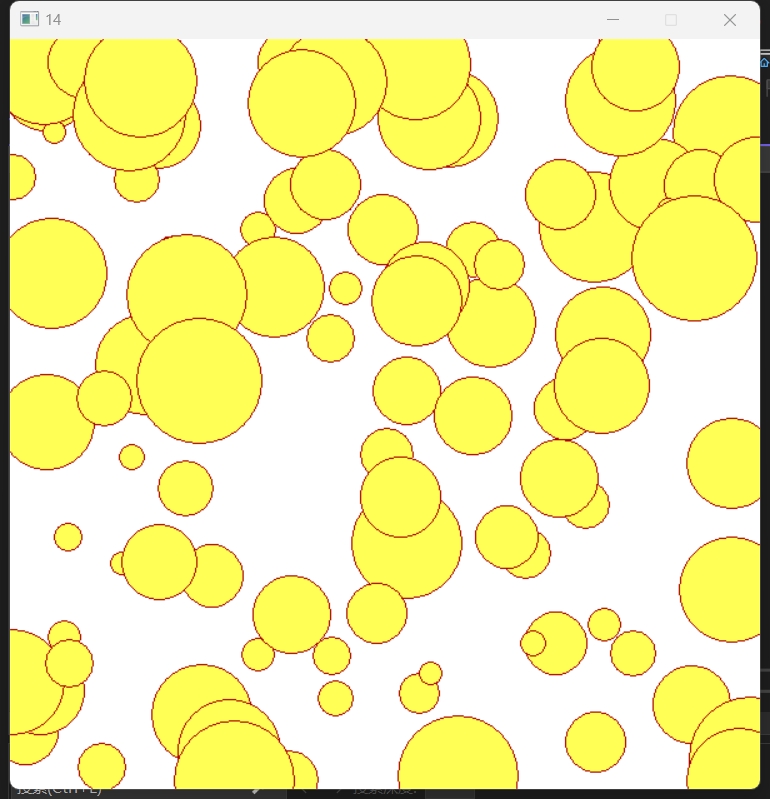

微信截图_20240711124734

2.每次增加一个随机圆

每隔一百毫秒，添加一个随机圆并绘制。

int circlenum = 0;
float x, y, r;//新增圆的属性

while(circlenum<100){
x = rand() % width;
y = rand() % height;
r = rand() % (rmax - rmin + 1) + rmin;

​ xarray[circlenum] = x;
​ yarray[circlenum] = y;
​ rarray[circlenum] = r;
​ circlenum++;
​ `setlinecolor(RED);` ​ `setfillcolor(YELLOW);` ​ `fillcircle(x,y,r);`
​ Sleep(100);

}

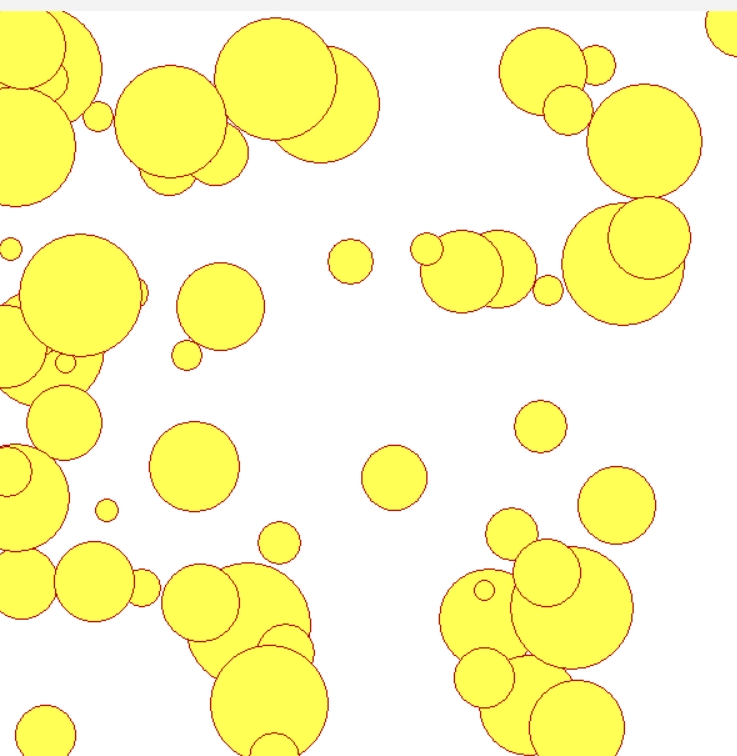

微信截图_20240711135733

3.新圆不和已有圆相交

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
#include<stdio.h>
#include<conio.h>
#include<graphics.h>
#include<time.h>
#include<math.h>

//求解两个点之间的距离
float Dist(float x1, float y1, float x2, float y2) {
	float result;
	result = sqrt((x1 - x2) * (x1 - x2) + (y1 - y2) * (y1 - y2));
	return result;
}

//判断两个圆是否相交
int xiangjiao(float x1, float y1, float r1,float x2, float y2,float r2) {
	if (Dist(x1, y1, x2, y2) < r1 + r2) return 1;
	return 0;
}

//生成随机整数
int randbetween(int min, int max) {
	int r = rand() % (max - min + 1) + min;
	return 1;
}

int main() {
	int width = 600;
	int height = 600;
	initgraph(width, height);
	setbkcolor(WHITE);
	cleardevice();
	srand(time(0));

	int xarray[100];
	int yarray[100];
	int rarray[100];
	int rmin = 8;
	int rmax = 50;
	int circlenum = 0;
	float x, y, r;//新增圆的属性
	int isnewcircleOK;//用于判断新生成的圆是否满足条件
	int i = 0;

	while(circlenum<100){
		isnewcircleOK = 0;
		while (isnewcircleOK == 0) {
			x = rand() % width;
			y = rand() % height;
			r = randbetween(rmin, rmax);

		for (i = 0; i < circlenum; i++)
			if (xiangjiao(xarray[i], yarray[i], rarray[i], x, y, r)) break;
		if (i == circlenum) isnewcircleOK = 1;
	     }
		xarray[circlenum] = x;
		yarray[circlenum] = y;
		rarray[circlenum] = r;
		circlenum++;

		setlinecolor(RED);
		setfillcolor(YELLOW);
		fillcircle(x,y,r);

		Sleep(10);
	}

	_getch();
	closegraph();
	return 0;

}

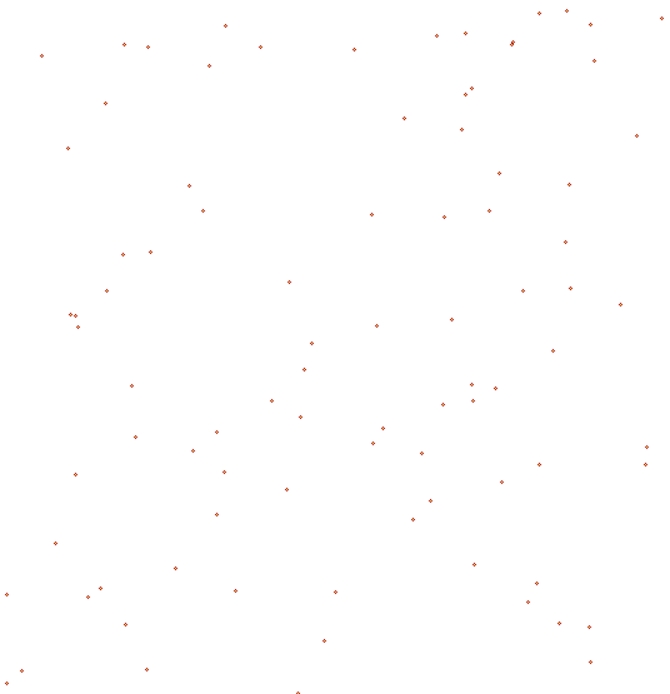

微信截图_20240711142536

4.新圆半径最大化

while(circlenum<100){
isnewcircleOK = 0;
while (isnewcircleOK == 0) {
x = rand() % width;
y = rand() % height;
r = rmin;//新圆的半径开始设置为最小半径

for (i = 0; i < circlenum; i++)
if (xiangjiao(xarray[i], yarray[i], rarray[i], x, y, r)) break;
if (i == circlenum) isnewcircleOK = 1;
}

isnewcircleOK = 0;//继续设置为不ok，接下来要让这个新圆的半径最大
while (isnewcircleOK == 0 && r < rmax) {
r++;
for (int j = 0; j < circlenum; j++) {
if (xiangjiao(xarray[i], yarray[i], rarray[i], x, y, r)) {
isnewcircleOK = 1;
break;
}
}
}

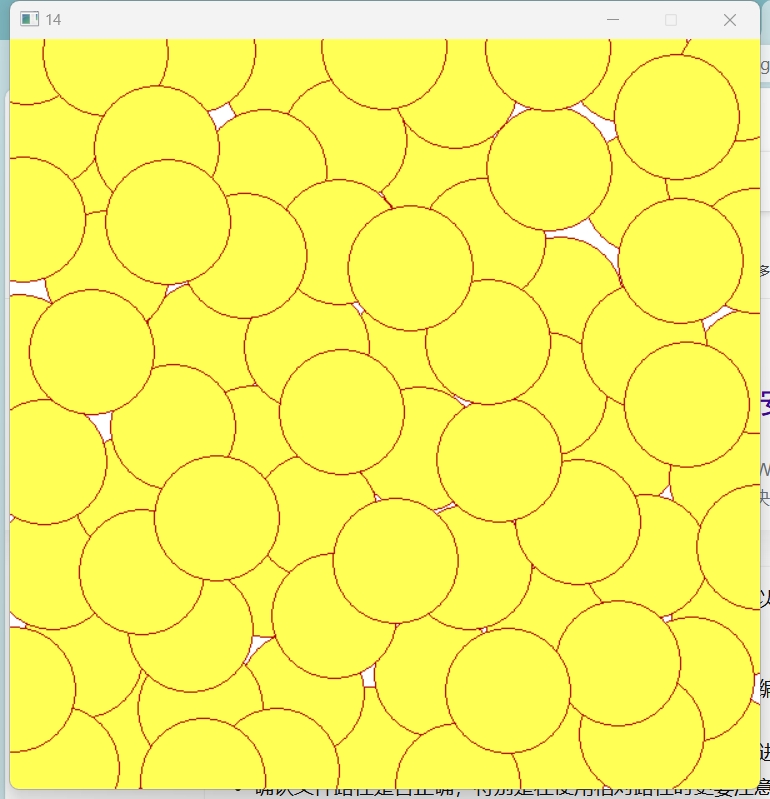

微信截图_20240711143335
